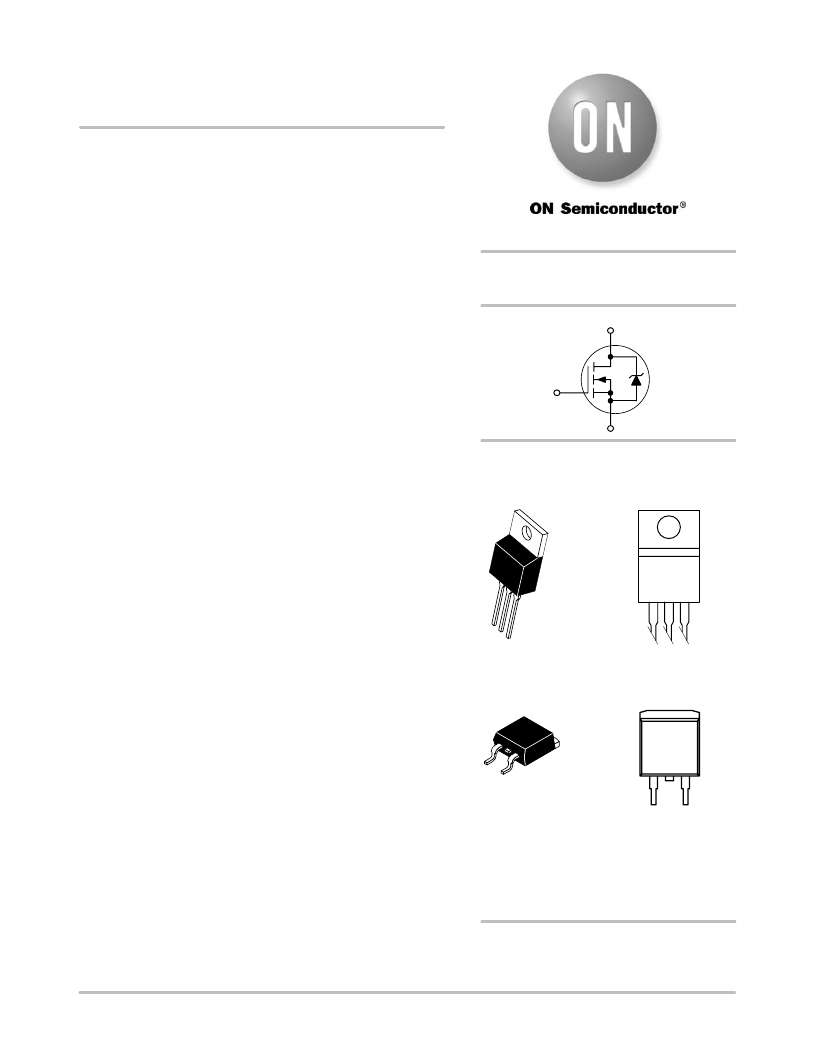

NTP75N03L09,
NTB75N03L09
Power MOSFET
75 Amps, 30 Volts
N?Channel TO?220 and D 2 PAK
http://onsemi.com
This Logic Level Vertical Power MOSFET is a general purpose part
that provides the “best of design” available today in a low cost power
package. Avalanche energy issues make this part an ideal design in.
The drain?to?source diode has a ideal fast but soft recovery.
Features
75 AMPERES, 30 VOLTS
R DS(on) = 8 m W
N?Channel
D
?
?
?
?
?
?
?
Ultra?Low R DS(on) , Single Base, Advanced Technology
SPICE Parameters Available
Diode is Characterized for Use in Bridge Circuits
I DSS and V DS(on) Specified at Elevated Temperatures
High Avalanche Energy Specified
ESD JEDAC Rated HBM Class 1, MM Class B, CDM Class 0
Pb?Free Packages are Available
G
S
MARKING DIAGRAMS
& PIN ASSIGNMENTS
Typical Applications
? Power Supplies
? Inductive Loads
? PWM Motor Controls
? Replaces MTP75N03HDL and MTB75N03HDL in Many
Applications
4
TO?220
CASE 221A
STYLE 5
4
Drain
75N
03L09G
AYWW
1
2
3
1
Gate
2
3
Source
Drain
4
Drain
4
75N
1
2
3
D 2 PAK
CASE 418AA
STYLE 2
03L09G
AYWW
2
1
Drain
Gate
3
Source
75N03L09
A
Y
WW
G
= Device Code
= Assembly Location
= Year
= Work Week
= Pb?Free Package
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 2 of this data sheet.
? Semiconductor Components Industries, LLC, 2005
August, 2005 ? Rev. 7
1
Publication Order Number:
NTP75N03L09/D
